Micro Stepper Motor 09/20 Stepper Motor Mini Linear Lead Screw Nut Slider Moving Push Motors 20mm Stepper Motor Driver

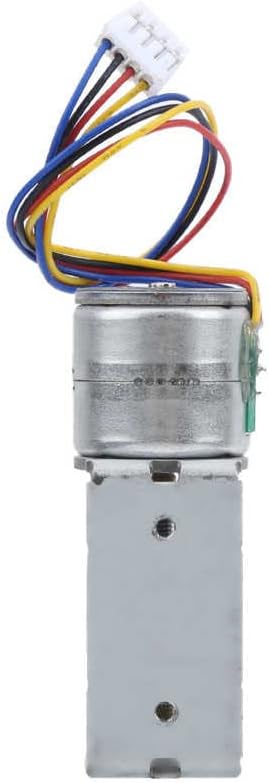

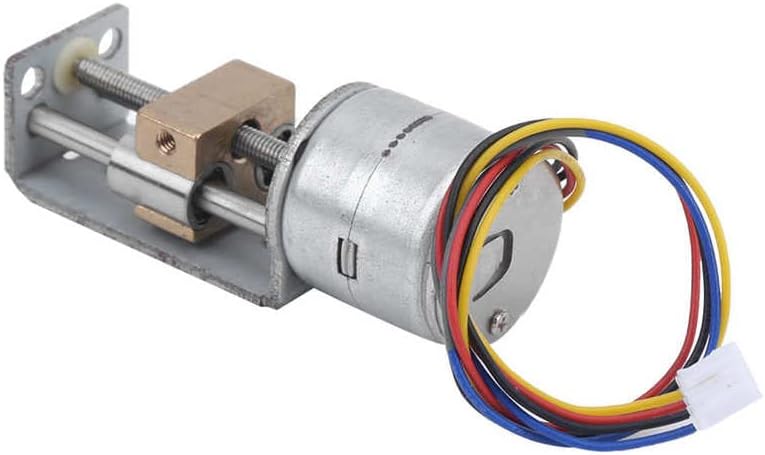

09/20 Stepper Motor Mini Linear Lead Screw Nut Slider Moving Push Motors 20mm Features: 1. Can be used in DIY small slider/project/measurement equipment printer.2. Miniature 2‑phase 4‑wire stepper motor with planetary gearbox, planetary gearbox reducer adopts all metal structure.3. The stepper motor drives the accurate diagonal pattern to move the metal slider up and down.4. The bracket is basically made of metal structure, strong and durable, has a long service life.5. The driving voltage is 5‑9v/200‑600mA, the higher the voltage, the greater the force and the greater the heat. Specifications: Item Type: 09/20 Stepper Motor Motor Type: 2-phase 4-wire systemDrive Voltage: 5-9v/200-600mA (the higher the voltage, the greater the force, the greater the heat)Screw Length: Approx. 32mm / 1.3inSlider Stroke: Approx. 22mm / 0.9inMotor Diameter: Approx. 20mm / 0.8inScrew Diameter: Approx. 3mm / 0.1inScrew Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)Step Angle: 18°Phase Resistance: 21ΩBlue A+Black B+Red B-Yellow A- Package List: 1 x 09/20 Stepper Motor Note: Note that it is a stepper motor, it will not turn when directly connected to the power, and a stepper motor driver board and control board. Picture Show: It is impossible to address issues if we do not know about them! Return and Item specifics:Current / phase: 200-600mA Holding torque: Stand Step angle(degrees): 18 Phase: 2Model number: 09/20 Type: HYBRIDCertification: NONEOrigin: Mainland ChinaCertification: NONEMotor type: 2-phase 4-wire systemDrive voltage: 5-9V/200-600mAScrew length: Approx. 32mmSlider stroke: Approx. 22mmMotor diameter: Approx. 20mmScrew diameter: A

• 1. Can be used in DIY small slider/project/measurement equipment printer.
• 2. Miniature 2‑phase 4‑wire stepper motor with planetary gearbox, planetary gearbox reducer adopts all metal structure.
• 3. The stepper motor drives the accurate diagonal pattern to move the metal slider up and down.
• 4. The bracket is basically made of metal structure, strong and durable, has a long service life.
• 5. The driving voltage is 5‑9v/200‑600mA, the higher the voltage, the greater the force and the greater the heat.
